Contemporary Design
Meets Modern Technology
Redefine Your Backcountry Flying
Are you ready to build your dream aircraft and experience the ultimate freedom of backcountry flight? The Orion Cub redefines what’s possible in light aviation, blending contemporary design with modern technology for an unparalleled building and flying experience.
Discover the Orion Cub:
Engineered for Performance & Adventure
Learn more about the aircraft with interviews with the designer and U.S. distributor.
About The Aircraft

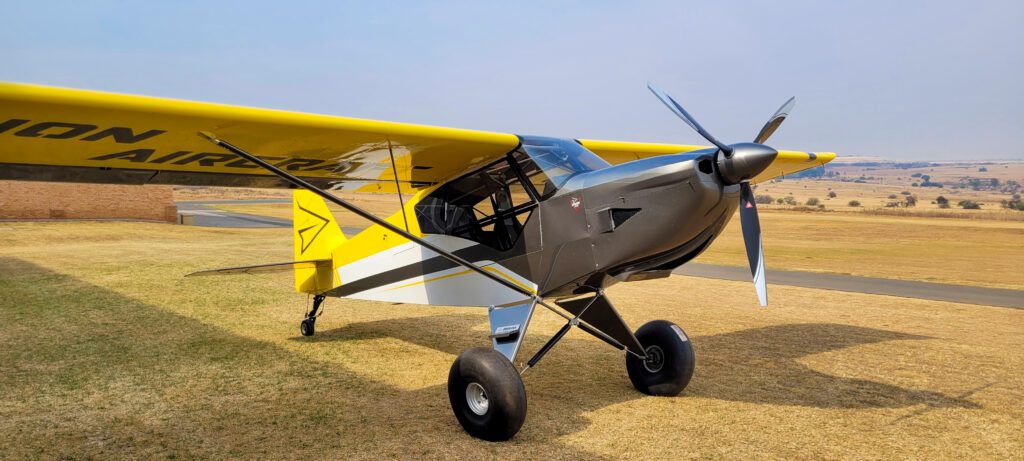

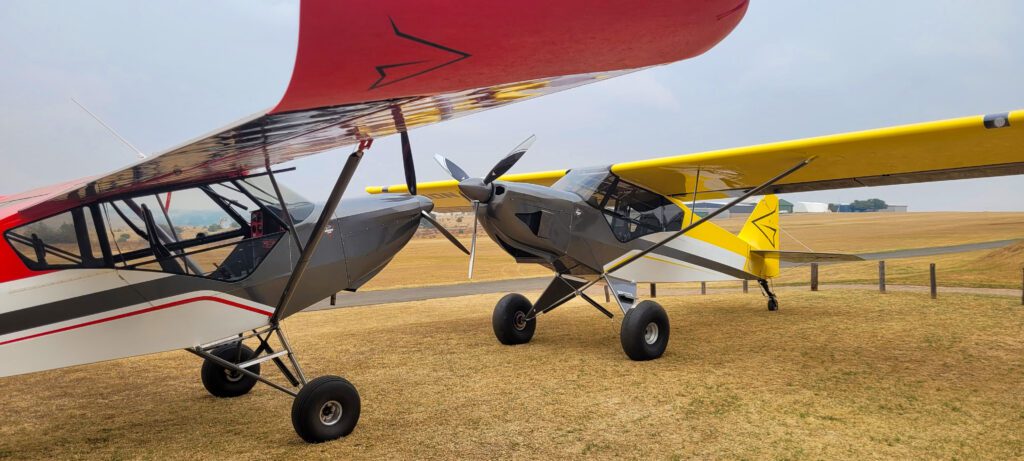

The Orion Cub is meticulously designed to provide exceptional performance, utility, and safety. Crafted with a robust 4130 chromoly fuselage, it stands longer, wider, and taller than many aircraft in its class, offering superior comfort and capability.
Its advanced wings feature an aluminum monocoque structure and a modern Riblett airfoil, complemented by slotted flaps and FRISE ailerons. This innovative design results in:
- Expansive Flight Envelope: Enjoy safe slow flight for challenging landings, combined with a respectable cruise speed.
- Impressive Useful Load: Optimized for modern lightweight aircraft engines, the Orion Cub boasts a remarkable 840 lb useful load, allowing you to carry more for your adventures.
Key Specifications
- Wingspan: 32.15 ft
- Length: 23.6 ft
- Cockpit Width: 30.12 inches
- Empty Weight: 923 lb
- Useful Load: 840 lb
- Fuel Capacity: 38 gallons
- Engine Range: Accommodates 100hp to 200hp
Performance Highlights
- Maximum Speed (VNE): 130 knots (150 mph)
- Cruise Speed: 108 knots (124 mph)
- Stall Speed: 23 knots (27 mph)
- Standard Endurance: 7 hours
- Range: 700 miles
Customization and Controls
Power
Engine options range from 100 HP to 185 HP with a Rotax, or up to 200 HP with a Lycoming/Titan Engine
Technology
The unique, concave panel casing is easy on the eyes and can support basic or advanced avionics packages.
Comfort
The controls are balanced and responsive, and the cabin area is comfortable and spacious.
Builder Assistance Program: Your Dream, Simplified
Building your own aircraft is a profound and rewarding journey, and we’re here to ensure it’s a fun and life-changing experience. Our comprehensive Builder Assistance Program provides step-by-step guidance from the moment you order your kit all the way to your triumphant first flight.
We provide:
- Expert Guidance: Dedicated support throughout the entire construction process.
- Simplified Building: A structured approach designed to make complex tasks manageable.
- Community & Support: Join a network of passionate builders and innovators
Whether you’re an experienced builder or new to aircraft construction, our program is tailored to support your success.
Ready to Start Your Build?

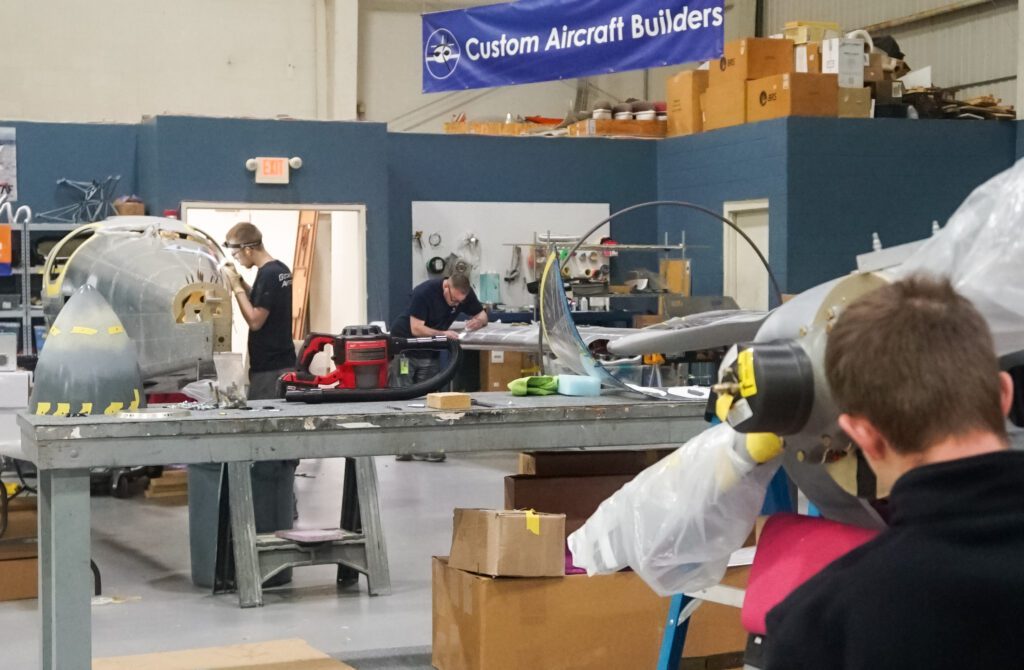

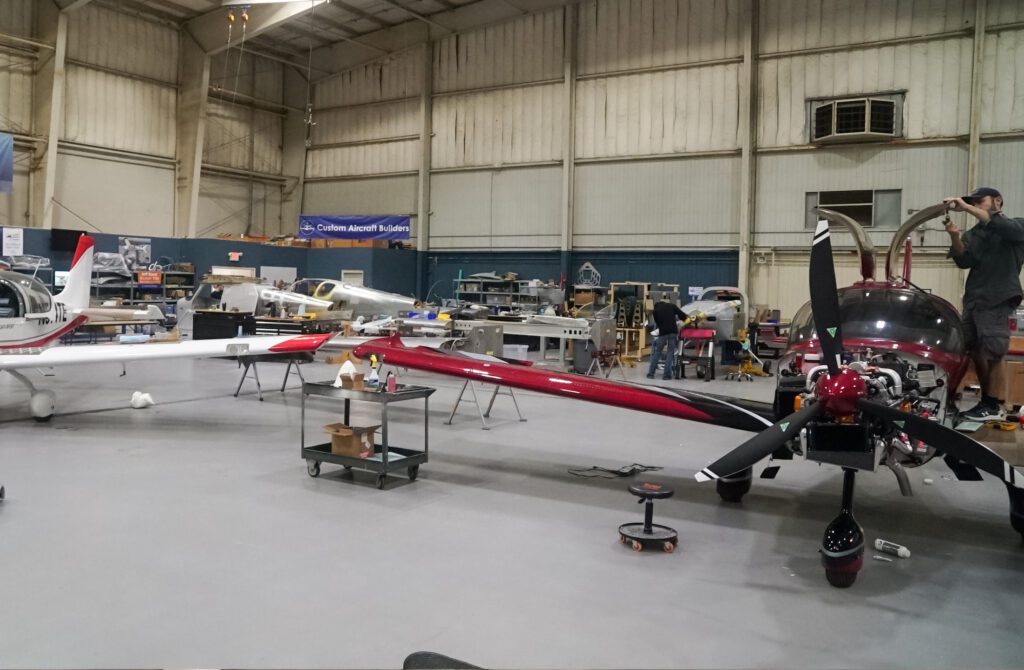

Orion Cub USA Builder Assistance Program through Custom Aircraft Builders is located at the Greater Binghamton Airport (BGM), providing a convenient hub for your building journey.
Contact Us Today!
- (607) 862-5252
- [email protected]
